ESP32-OLED kombinált alappanel (ESP32; 128×64 0.96OLED)

Name: ESP32-OLED kombinált alappanel (ESP32; 128x64 0.96OLED)
SKU: T59938
Availability: InStock

5.950Ft (4.685Ft+27% ÁFA)

6 készleten

Cikkszám: T59938 Kategóriák: Alaplap, Grafikus

Leírás

Az ESP32 modulra épülő alappanel a kijelző segítségével egyszerű megoldást kínál a WiFi és BlueTooth kapcsolatokra épülő mintaáramkörök megvalósítására. A PC oldal felé nem igényel semmiféle plusz kiegészítést, mivel az ESP32 chip soros kommunikációját a beépített CP210x (SiLabs) soros-USB illesztőchip valósítja meg. A könnyű programozást NodeMCU (LUA), Micropython vagy Arduino nyelven is végezhetjük.

Tipp: A modul 2.54 mm (standard) raszteres beforrasztható lyuksorral rendelkezik, így 170, 400 vagy 830 lyukas breadborddal nagyon könnyen külső eszközök illeszthetőek hozzá.

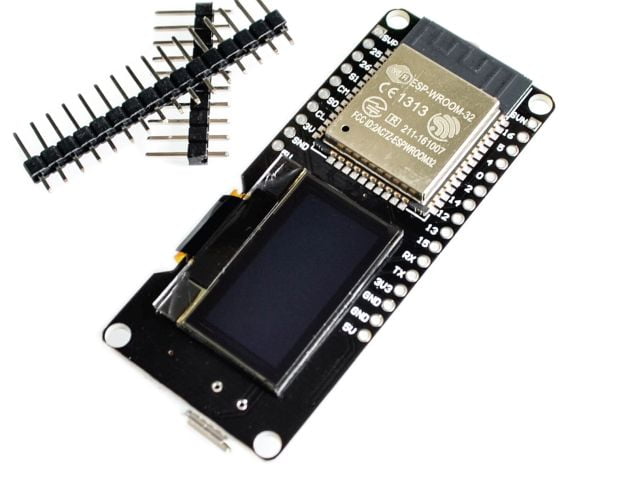

A modul az ESP32 (ESP-WROOM-32) WiFi/BlueTooth illesztővel szerelt, míg a 128×64 pixeles 0.96″ OLED segítségével az egyszerű minták azonnal tesztelhetőek.

Szolgáltatások

Tápfeszültség: 3.3V (ESP32); 5V (USB),
I/O felület: 3.3V LVTTL,
Áramfelvétel: max. 300mA (WiFi adás, OLED).
Frekvencia: 2.4 GHz sáv (802.11 B/G/N),
Antenna: integrált antenna,
Adatsebesség: 115200/8/n/1 (konfigurálható),
Biztonság: WiFi (OPEN / WEP / WPA_PSK / WPA2_PSK / WPA_WPA2_PSK)
Működési mód: Client / Access Point / Both Client and Access Point,
Kommunikáció: TCP és UDP,
Egyidejű kapcsolatok száma: max. 5,
Működési hőfoktartomány: -20 ~ +75 °C,
Mintahardware: OLED (SSD1306).
Csatlakozás: microUSB.

Lábkiosztás

Szitázva a fejlesztőkészleten.

Csomag

1x ESP32/OLED panel,
1x USB-microB kábel.

Dokumentáció

További információk

Tömeg	0,015 kg
Méretek	7 × 3 × 1 cm

Értékelések

Még nincsenek értékelések.

„ESP32-OLED kombinált alappanel (ESP32; 128×64 0.96OLED)” értékelése elsőként
